Free Shipping DIY 48V 20Ah scooter lithium ion battery pack 48V 1000w Electric bike Battery with 30A BMS and fast charger

Free Shipping DIY 48V 20Ah scooter lithium ion battery pack 48V 1000w Electric bike Battery with 30A BMS and fast charger
    Please select the information you wantX
(100 available)
  • Description
  • warranty
  • Reviews
Product Description


  Battery Feature

1.  Battery pack with shrink wrap PVC and waterproof glue. 2.  Pack dimensions can be customized. 3.  BMS constant current can be customized. 4.  Light weight. 5.  Connectors can be customized.

Battery parameters
Model D034
Battery type Li ion Battery
Rated Voltage 48V
Rated Capacity 20Ah
Battery cell 18650 Chinese A grade 2500mAh cells
Dimension(mm) 245*160*70 defult
Battery weight 5.3KG
BMS current 30A fit for 750w 1000w motor
Max.charge current 5A
Charge voltage  54.6v
Discharge cut-off voltage 36.4v
Charger 2.5A or 3A optional

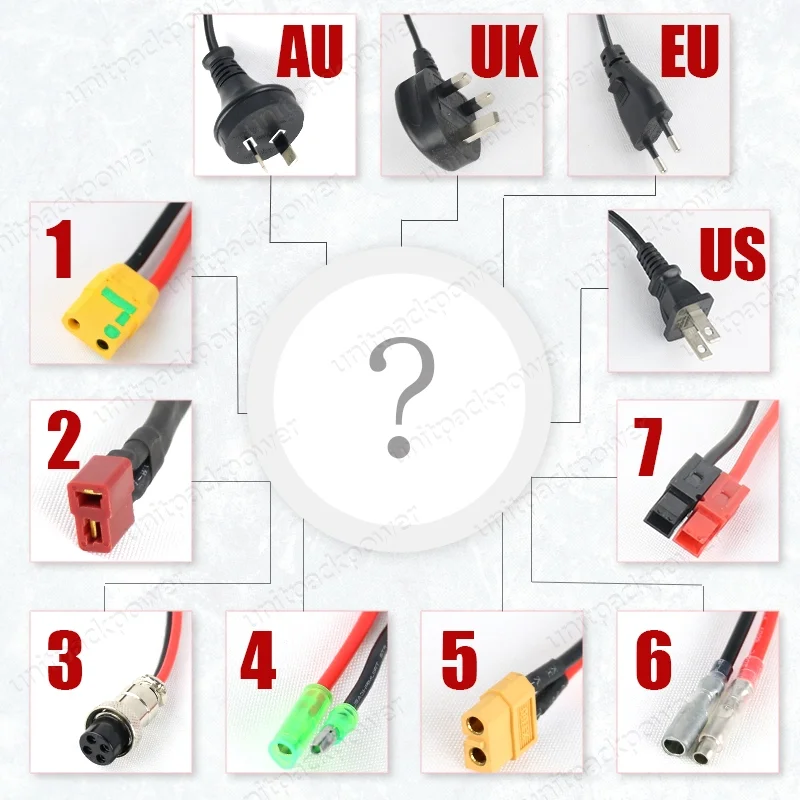

Charge Plug and Discharge Connector


1.Charge Plug:
Due to the battery only ship to America area,so will provide default US plug.
2. Discharge Connector:
- With 2.5A charger,the discharge cable soldered with connector has 2 options which is No.5 orNo.7 connector.So please remark which connector you need when you place the order.
- With 3A charger, the discharge cable soldered with default No.7 connector.


Packing & Delivery

1. Packing list included:

   - Lithium Battery Built-in cells and 30A BMS * 1 pc
   - 54.6V 2.5A or 3A Charger * 1 pc
   - AC US standard plug * 1 pc

2. The battery will ship from our USA wh,we will arrange shipment within 1 working day after your payment is confirmed. Delivery time is usually 3-5 working days after shipping.

We provide 1 year warranty for all electric bike batteries.

Any battery with quality problem in one month we can return the money after you provid the proof.

After one month we can send BMS or cells to you for repair,or you can send it back to repair as well.

All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.

Our global after-sales service centers are located in Westhausen Germany, California USA, Victoria AU.

If your battery cant work during warranty, sent it to nearest after-sales center, we will repair it well then send it to you.
