Name: Upgarde Triangle Battery P101 48V 60V 72V 20AH BMS60A LG5000 Cells Li-ion EBike Battery For 500W 750W 1000W 1500W 2000W 2500W 3000W Motor
Brand: UPP Battery
Price: 385.00 USD
Availability: InStock

Specifications

Upgarde P101 72V 20AH LG5000 Lithium Battery Pack for 500W 750W 1000W 1500W 2000W 3000W Motor With Charger【USA STOCK】/3-7working days arrive/Free shipping NO VAT

For whosale or custom order ,please contact us Customer Service.

Battery Parameter
Model	UPP-P101
Battery Type	Li ion Battery
Rated Voltage	48V	52V	60V	72V
Rated Capacity	30AH	30AH	20AH	20AH
Watt Hour	1440WH	1560WH	1200WH	1440WH
Battery Cell	LG5000	LG5000	LG5000	LG5000
Series&Parallel	13S6P	14S6P	16S4P	20S4P
Fit Power	0-1800W	0-2000W	0-2200W	0-3350W
Battery Weight	6.4KG	6.8KG	5.4KG	6.6KG
Max. Constant Discharge Current	50A GPS	50A GPS	50A	60A
Peak Current	150A	150A	150A	180A
Max.Charge Current	5A	5A	5A	5A
Max.Charge Voltage	54.6V	58.8V	67.2V	84V
Discharge Cut-off Voltage	36.4V	39.2V	44.8V	56V
Cycles Life	≥1000	≥1000	≥1000	≥1000
With Charger	54.6V 4A charger	58.8V 4A charger	67.2V 4A charger	84V 4A charger
Discharge Connector	XT60	XT60	XT60	XT60
Charger Temperature	0~45℃	0~45℃	0~45℃	0~45℃
Discharge Temperature	-10℃~60℃	-10℃~60℃	-10℃~60℃	-10℃~60℃
IP Rating	IP66	IP66	IP66	IP66
BMS	Overcharge, overdischarge and over-temperature protection
Dimension	4087436524085mm

Note:This battery does not come with a battery bag.

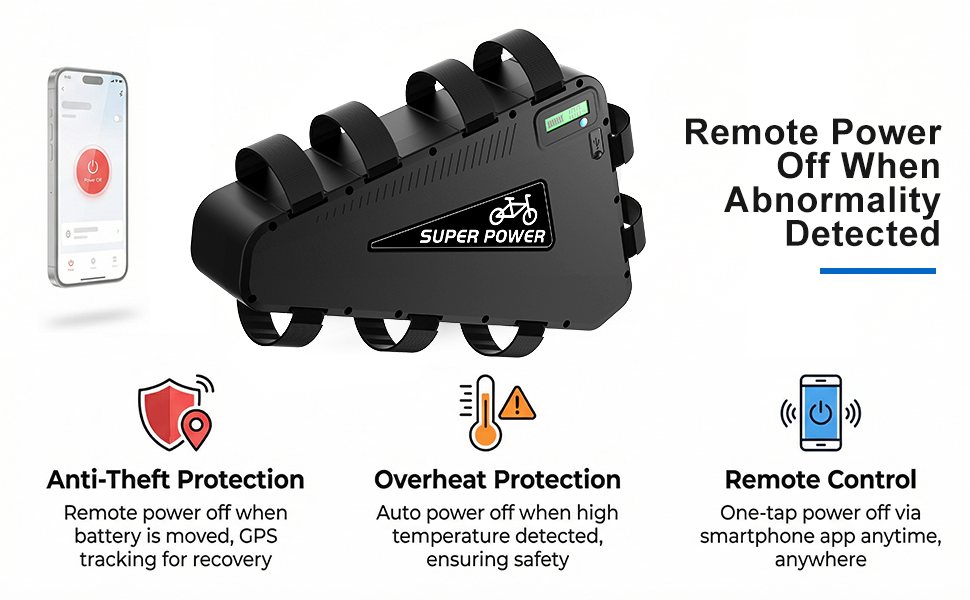

GPS Smart Battery Safety & Management System

1. Abnormal Temperature Alert Equipped with high-precision internal sensors for 24/7 real-time temperature monitoring. If any abnormal temperature spike is detected, the app instantly pushes a high-priority alert, allowing for immediate intervention to proactively eliminate and mitigate fire risks.

2. Remote Dual-Protection Switch Take control of charging and discharging from anywhere. The system automatically cuts power once fully charged to prevent overcharging. Additionally, you can remotely terminate charging via the app at any time. The app’s remote control and the battery's physical switch work as mutual backups, providing dual-layer safety protection.

3. Precision Data Dashboard Move beyond traditional, vague battery indicators. Powered by advanced algorithms, the app delivers highly accurate, real-time data readouts: voltage, current, temperature, cycle count, overall lifespan, remaining mileage, and riding routes. Your battery’s health is always completely transparent.

4. Smart Anti-Theft & Live Tracking 【New】 Featuring an integrated, independent GPS positioning module. If your ebike or battery experiences unauthorized movement, the app instantly triggers an anti-theft alarm. With all-weather real-time tracking, you can pinpoint the exact location on the map even if the battery or vehicle is stolen, maximumly securing your assets.

5. Flexible Account Management Designed for ultimate convenience and security. A single mobile account can link and manage multiple batteries simultaneously for seamless switching. To prevent unauthorized access, each battery can only be bound to one primary account, making it a secure solution perfectly suited for personal, family, or fleet operations.

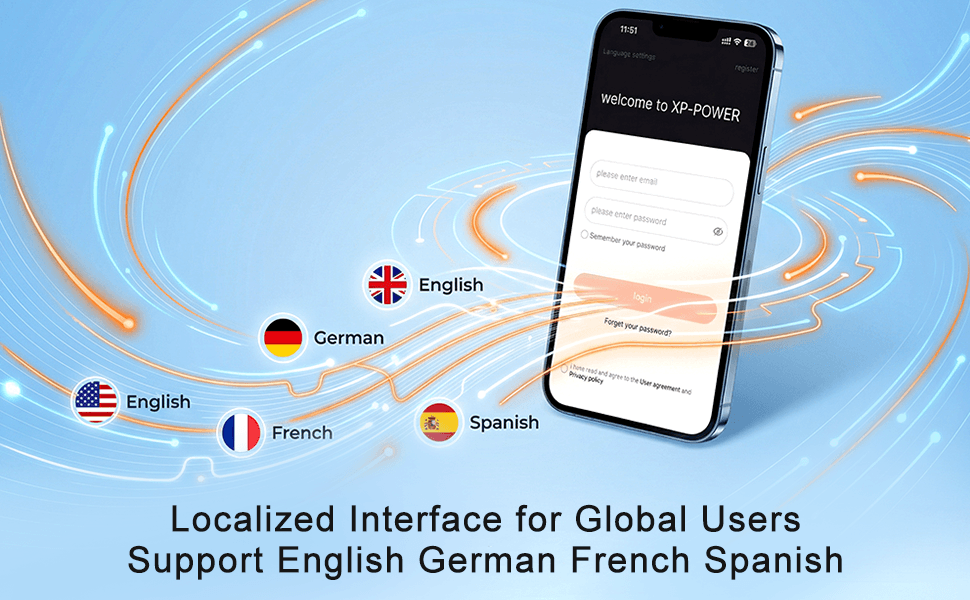

6. Multi-Language Support The app natively supports English, German, French, Spanish, and Italian. Customers from other regions can easily navigate and enjoy full smart safety protection by selecting any of these widely supported languages.

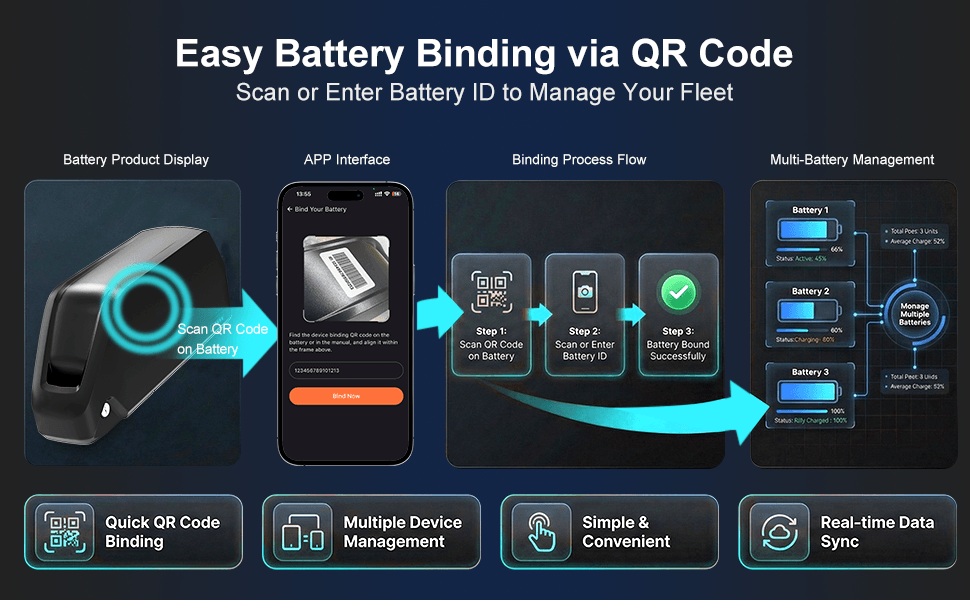

How to Connect the Battery to the App

Download the App: Go to the App Store or Google Play and download the XP-POWER app.

Account Setup: Register a new account and configure your language settings.

Scan Barcode: Scan the barcode located on the battery.

Link Battery ID: Scan or manually enter the Battery ID.

Important for Returns: If you need to return the product, please unbind the ID before initiating the return process.

Package list:
EBike Battery Pack*1
Charger*1
Battery Strap*10

Custom battery: XLR charging input and XT-60 discharge output by default.
The connector can be specified, please note on your order. Thank you!

Trade & Market

Main Markets	Total Revenue(%)
North America	23.00%
Western Europe	20.00%
Oceania	15.00%
Northern Europe	12.00%
Eastern Europe	9.00%
Southern Europe	8.00%
Southeast Asia	6.00%
South America	5.00%
Mid East	2.00%

Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.

Does not use or leave the battery near a heat source as fire or heater.

Use the battery charger specifically for that purpose when recharging.

Do not upside down the position and negative terminals.

Do not connect the battery electrodes to an electrical outlet.

Do not discard the battery in fire or a heater.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

Do not strike, trample or throw the battery.

Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

Shenzhen Unitpackpower Technology Co., Ltd

We are a professional manufacture with factory, which produce all kinds of high quality lithium baterruies as customers' requirements and designs. Our products have already exported to many places all over the world. This is a team which not only master advanced science and technology but also full of passion and energy. We are trying best to provide you high quality products as well as the sincere services.

Why Choose UPP (Unit Pack Power)?

1) Factory Direct Store: We assemble all batteries in our own factory, never use fake or cheap cell pack sell at lowest price to attract buyers. In addtion, we have to scrimp on everything, assemble them as quickly/cheaply as possible. We don’t take chances when it comes to our batteries or your safety!

2) Official High Quality Cell Sources: We only source genuine A-grade genuine cells from the official sources.

3) Every Battery Made Cycle Test: Each pack is ran through a full charge and discharge before leaving our facility to make sure you are getting every amp hour you paid for.

The test include: Short Circuit Safety Test √ Overcharge Safety Test √ Crush Safety Test √ Needing Safety Test √ Extrusion Safety Test √

4) Best Oversea After-sale Service: We do all this and offer it at our usual low pricing, we don’t charge a premium for Safety and Reliability. We have a proven track record of offering great after-sales support and warranty repairs/replacements. We will not leave you stuck (12 Month warranty, with Support Centres in Germany&Belgium&USA&Canada&Australia).

FAQ

Q: What type of this electric bike battery?
A: It is li ion battery, Chemical is Li(NiCoMn)O2.

Q: What is the difference between li ion battery, NI-MH battery and Lead acid battery?
A: E-bike Li-ion battery have longer cycle life, normal cycle life is 800-1000 times, and also with light weight, small size, No memory effect, Nontoxic, environmental friendly.

Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C

Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.

Q: Do your e-bike battery come with charger?
A: All of our e-bike batteries come with charger, Unless it says no charger. We have normal charger and fast charger. If you need fast charger please contact with us.

Q: Do your electric bike batteries come with BMS?
A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.

Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.

We provide 1 year warranty for all electric bike batteries.

Any battery with quality problem in one month we can return the money after you provid the proof.

After one month we can send BMS or cells to you for repair,or you can send it back to repair as well.

All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.

Our global after-sales service centers are located in Westhausen Germany, California USA, Victoria AU.

If your battery cant work during warranty, sent it to nearest after-sales center, we will repair it well then send it to you.
